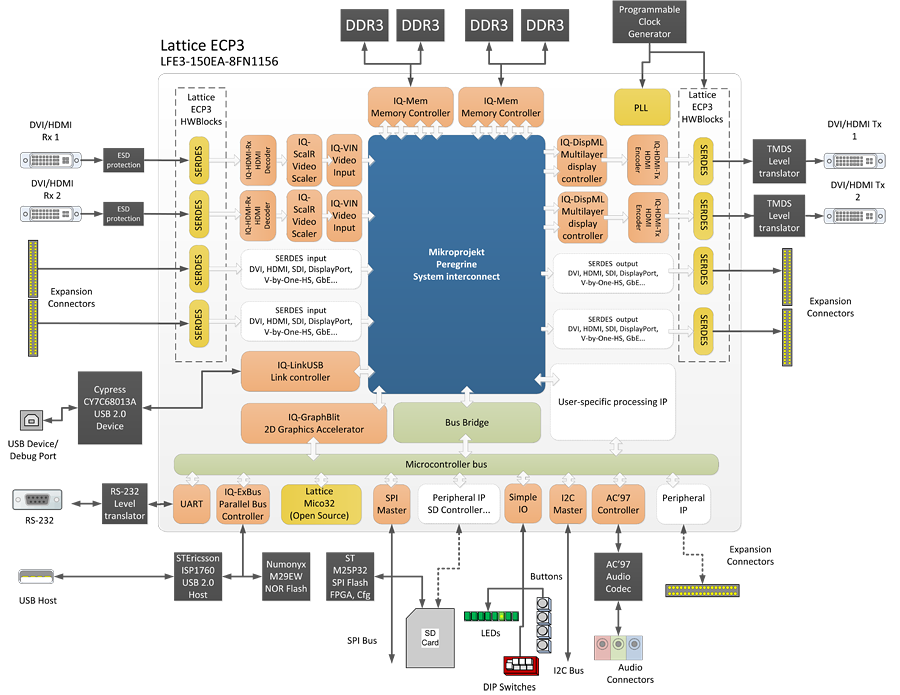

The Sparrowhawk FX board from Mikropojekt is an advanced FPGA development board targeted for video acquisition, processing, and display applications, based on the award-winning LatticeECP3 FPGA. The board is designed to support acquisition, processing, and output of multiple high definition video streams. Two banks of 32-bit DDR3-800 memory are provided to support frame buffering, delivering up to 6.4 GB/s in total - enough for 4 simultaneous 1080p60 video input and output streams over the onboard DVI-D or expansion connectors. The board integrates two input and two output DVI-D connectors (single link), with additional 8 SERDES input and output differential pairs available for expansion as DVI-D, SDI, or other video interfaces.
More information
For more information, please visit http://www.mikroprojekt.hr/products/development-systems/videodevelopment/fx

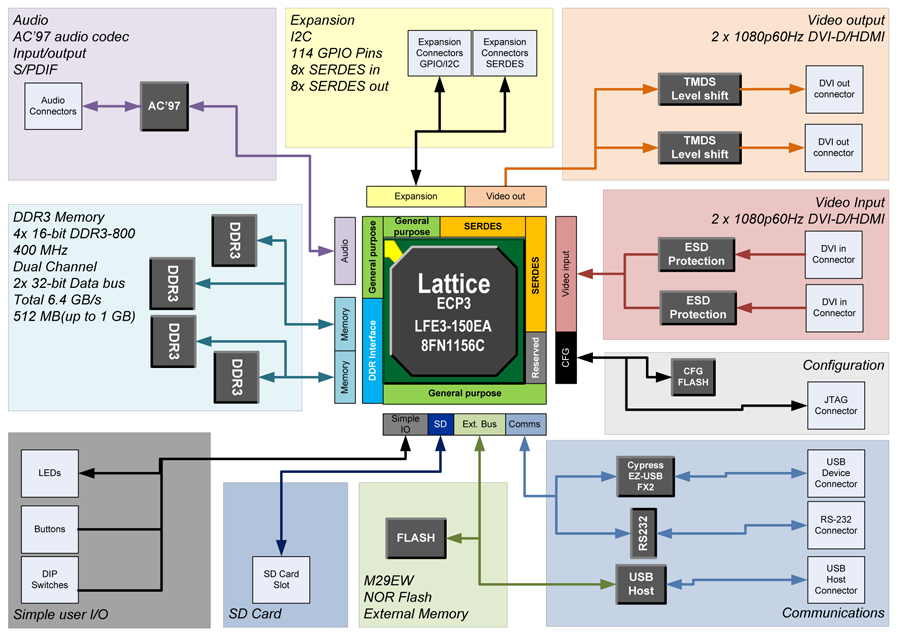

Features
- FPGA-based HD video processing supporting 1080p60 on all inputs and outputs
- 2x onboard HDMI Input/Outputs rated to 3G.
- Up to 2x additional DVI-D/HDMI IO via addon card
- 4x DDR3-800 memories, 6.4 GB/s
- I2S Audio codec
- Onboard USB device and host: Board programming and control via USB
- SD Card slot
- 114 GPIO pins
- Preloaded with high-definition video mixing design
- Scaling, cropping, and windowing, picture-in-picture effects
- Graphic overlays, blending and fading
- Multiple video inputs and outputs
- FPC type expansion connector compatible with a Mikroprojekt standard FPC breakout card
