MachXO3

Futureproof your control PLD and bridging designs

Related Products

Simplified Control PLD Design and Debug – With multiple I/O banks, a wide range of signaling standards, per-pin programmability and the highest I/O-to-Logic ratio in the industry - Don’t trade off features and functionality. Integrate more capabilities into MachXO3 device family with up to 9400 LUTs and 384 I/O.

Secure and Reliable – Protect your designs from malicious attacks using password protection, and mitigate soft errors through state of the art Soft Error Detection and Soft Error Correction features.

Extended Temperature Flexibility – Realize your next automotive or rugged environmental design with automotive AEC-Q100 qualified XO3LF devices.

Features

  • Up to 9400 LUTs with up to 384 I/O pins
  • Instant-on 1 ms boot-up with background upgrade, Hitless I/O reconfigure and dual-boot error recovery
  • Available with 3.3/2.5 V core or low power 1.2 V core – including additional options on 9400 LUT devices
  • MachXO3LF includes programmable Flash and User Flash Memory (UFM)
  • Available in amazingly small (2.50 x 2.50 mm, 0.4 mm pitch) WLCSP packages and BGA packages with 0.50 mm and 0.80 mm pitch
Automotive

Jump to

Family Table

MachXO3 Device Selection Guide
PARAMETERS MachXO3L-640/
MachXO3LF-640		 MachXO3L-1300/
MachXO3LF-1300		 MachXO3L-2100/
MachXO3LF-2100		 MachXO3L-4300/
MachXO3LF-4300		 MachXO3L-6900/
MachXO3LF-6900		 MachXO3L-9400/
MachXO3LF-9400
Density LUTs 640 1300 2100 4300 6900 9400
Distributed RAM (kbits) 5 10 16 34 54 73
EBR SRAM (kbits) 64 64 74 92 240 432
UFM (kbits, MachXO3LF only) 64 64 80 96 256 448
VCC = 2.5 V/3.3 V - Yes
 Yes
 Yes
 Yes
 Yes
VCC = 1.2 V Yes
 Yes
 Yes
 Yes
 Yes
 Yes
Temperature Grades1 C / I / A2 C / I / A2 C / I / A2 C / I / A2 C / I C / I
PLL 1 1 1 2 2 2
I2C 2 2 2 2 2 2
SPI 1 1 1 1 1 1
Timer/Counter 1 1 1 1 1 1
Oscillator 1 1 1 1 1 1
MIPI D-PHY Support Yes Yes Yes Yes Yes Yes
Multi Time Programmable NVCM MachXO3L MachXO3L MachXO3L MachXO3L MachXO3L MachXO3L
Programmable Flash MachXO3LF MachXO3LF MachXO3LF MachXO3LF MachXO3LF MachXO3LF

1. C = Commercial, I = Industrial, A = Automotive
2. Automotive grade devices available in MachXO3LF only

0.4 mm Spacing I/O Count
  640 1300 2100 4300 6900 9400
36-ball WLCSP (2.5 x 2.5 mm)1
28



49-ball WLCSP (3.2 x 3.2 mm)1

38


81-ball WLCSP (3.8 x 3.8 mm)1


63

0.5 mm Spacing I/O Count
  640 1300 2100 4300 6900 9400
100-pin TQFP (14 x 14 mm) 794 794 794


121-ball csfBGA (6 x 6 mm)1 100 100 100 100

132-ball csBGA (8 x 8 mm) 1044 1044 1044 1044

256-ball csfBGA (9 x 9 mm)1
206 206 206 206 206
324-ball csfBGA (10 x 10 mm)1

268 268 281
0.8 mm Spacing I/O Count
  640 1300 2100 4300 6900 9400
256-ball caBGA (14 x 14 mm)
2064 2064 2064 2062 2063
324-ball caBGA (15 x 15 mm)

2794 2794 2792
400-ball caBGA (17 x 17 mm)


3352 3352 3353
484-ball caBGA (19 x 19 mm)




3843

1. Package is only available for E=1.2 V devices
2. Package is only available for C=2.5 V/3.3 V devices
3. Package is available for both E=1.2 V and C=2.5/3.3 V devices
4. Package is available in automotive grade (MachXO3LF only)

Example Solutions

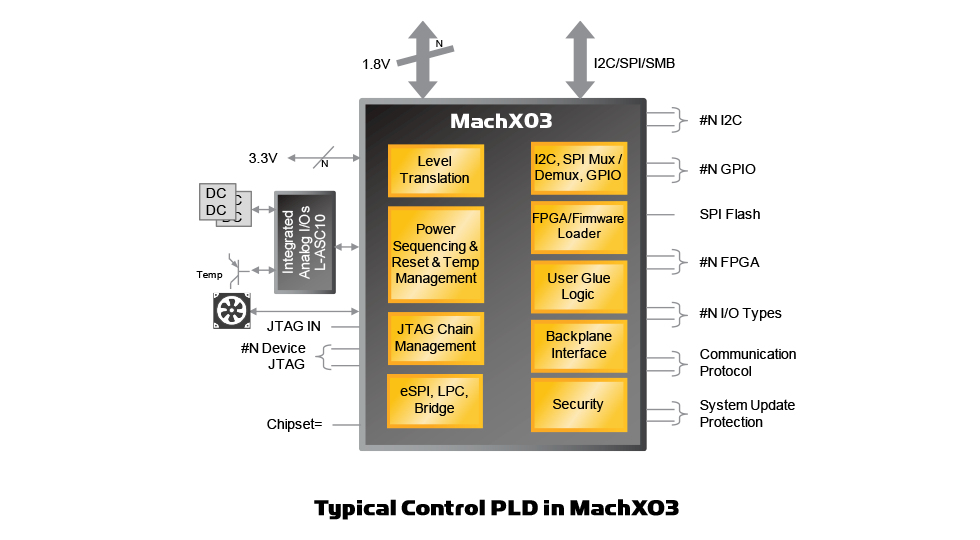

Control PLDExpand Image

Control PLD

  • Non-volatile PLD (640 to 9400 LUTs & 28 to 384 I/O) provides widest application coverage in servers, communication boxes and industrial controllers.
  • Reduce cost and BOM by integrating hardware management functions, such as power thermal management and control PLD, into MachXO3 and L-ASC10.
  • Add features and fix bugs in-system without interrupting the system operation through Hitless I/O.
  • Complete board debug faster through on-chip debug using Reveal.
MachXO3 - Motor Control ApplicationExpand Image

Motor Control Interface with MachXO3

  • Flexibility to interface with variety of motors used in Industrial, Automotive and other embedded systems
  • IGBT Protection and SPI interface allows real-time feedback to the MCU
  • Flexibility to support different communication standards at low power and fast response
  • Small footprint to accommodate space constrained applications
MachXO3 - Battery Management SystemExpand Image

Battery Management Control using MachXO3

  • MachXO3 provides controller for the battery management for mobile and portable embedded systems
  • Intelligent cell balancing for charge equalization for each battery cell.
  • Control charge/ discharge process and receive real-time battery information like State of Charge (SOC) and State of Health (SOH)
Interface_expansionExpand Image

Microprocessor Interface Expansion

  • Save cost by adding GPIO to low-cost microcontrollers
  • Add additional SPI and I2C interfaces to system control processors
  • Perform voltage level translation with ease
  • Simplify system management with PLD implementation of system status registers

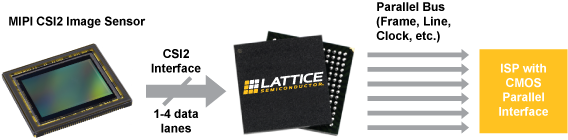

MIPI CSI2 DiagramExpand Image

CSI-2 Image Sensor Interfacing

  • Supports CSI-2 High Speed Differential Signaling
    • Both Rx and Tx interfaces
  • From 1-4 lanes of CSI-2 at up to 900 Mbps
  • Can be implemented in a 49 wlcsp (3.2 x 3.2 mm)
  • RAW, YUV or RGB supported

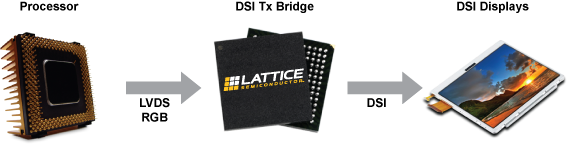

MIPI Application DiagramExpand Image

DSI LCD Display Interfacing

  • Supports DSI transmit signaling
    • HS (High Speed) Mode transmit
    • LP (Low Power) Mode transmit and receive
  • Can be implemented in a 49 wlcsp (3.2 x 3.2 mm)
  • Supports DSI formats RGB, YCbCr and User Defined
  • Input bus can also be DSI to enable LCD screen replacement
