The Lattice Sentry solutions stack includes everything system designers need to evaluate, develop, test and deploy a NIST SP800-193-compliant, FPGA-based Platform Firmware Resiliency (PFR) Root of Trust.

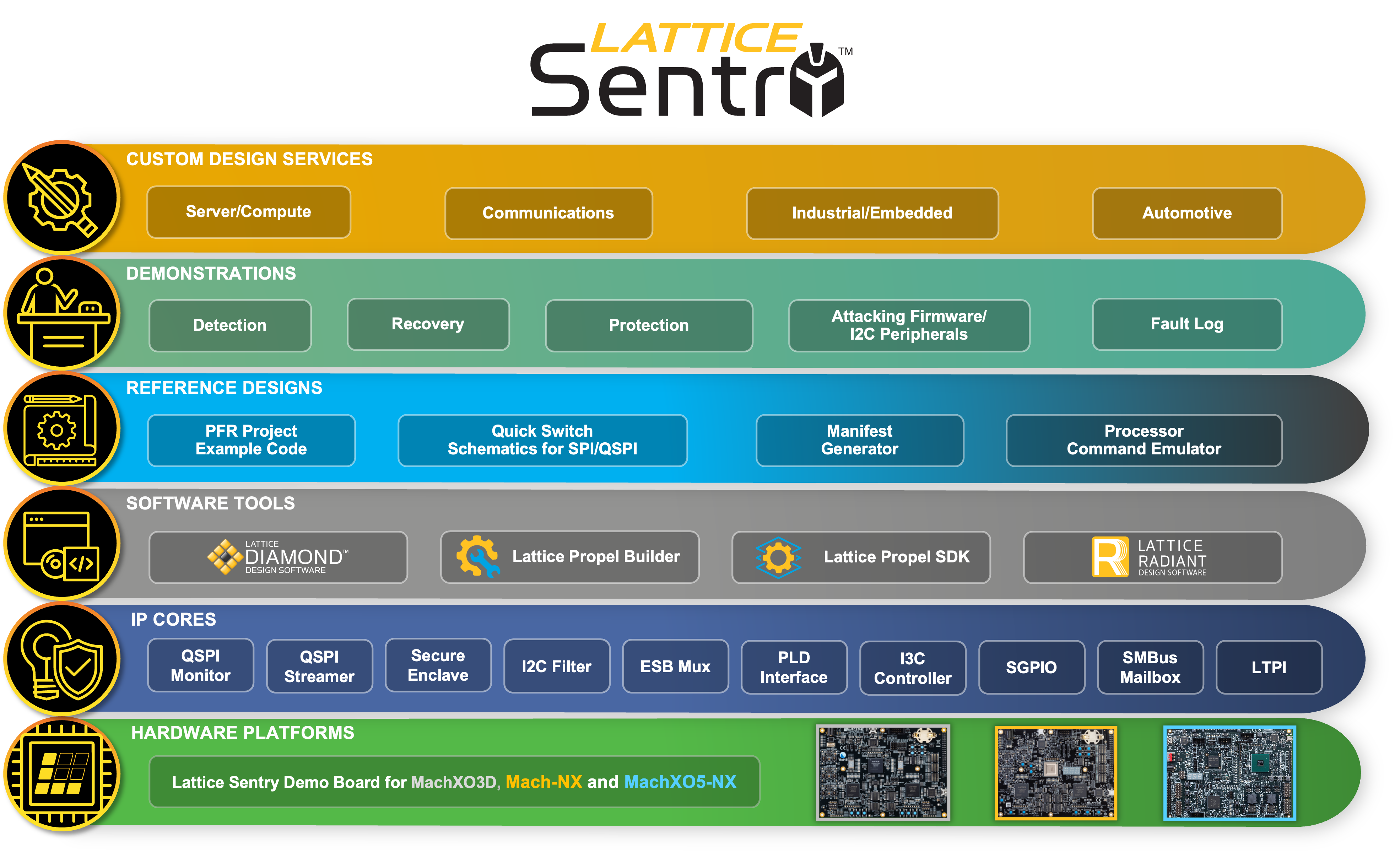

The Lattice Sentry solutions stack consists of a complete reference platform, fully validated IP building blocks, easy to use FPGA design tools, reference design/demonstrations, as well as a network of custom design services. In many instances, a fully functioning PFR solution can be developed by modifying the included RISC-V C source code. Yet, developers who wish to create additional RTL logic to supplement the functionality can do so using the Lattice Diamond and Propel software tools.

Available now for the Lattice MachXO5-NX, MachXO3D and Mach-NX FPGAs.

What’s New in Sentry 4.0?

The Sentry 4.0 release is now available for the MachXO5-NX family targeting the LFMXO5-55TD device.

Updated features include Slave SPI Provisioning flow added to the existing JTAG provisioning capability.

Also added was the DICE certificate and associated APIs to generate DICE attestation and Chain of Trust flow.

The UFM (User Flash Memory) sector now supports the Plain Text Mode and the ability to perform individual sector erase functionality.

Contact Sales

Video

Expand Video

Lattice Sentry 4.0 with DC-SCM Single Chip Solution (PFR +LTPI)

This solution integrates Lattice Sentry 4.0 Platform Firmware Resilience (PFR) and DC-SCM CPLD (LTPI) into a single chip. It utilizes a single Lattice MachXO5™ (LFMXO5-55TD) device.

System Architecture

Implementation

Reference Design

Reference Design
 Lattice Sentry 4.0 SCM and HPM CPLD Reference Design ​​This is a CPLD design template for the Secure Control Module (SCM) and Host Platform Module (HPM) for the Sentry 4.0 Server solution platform.​
MachXO3D, MachXO5-NX
SCM, HPM, CPLD, Lattice Sentry, Security, Defense, LTPI, MPESTI, SGPIO, eSPI, OCP
Reference Design
 Lattice Sentry Root of Trust Reference Design for MachXO3D This design utilizes Lattice Sentry IP to help you develop and test a complete NIST 800-193-compliant PFR solution. You can modify to suit your specific needs.
MachXO3D
NIST, RISC-V, Lattice Propel, Lattice Sentry, Security, Defense
Reference Design
 Lattice Sentry Root of Trust Reference Design for Mach-NX This design utilizes Platform Firmware Resiliency System Root of Trust to help develop and test a complete NIST 800-193 compliant security system that protects, detects, and recovers.
Mach-NX
GPIO Control, I2C, RISC-V, SPI, UART, NIST, Lattice Propel, Lattice Sentry, Defense
Reference Design
 ​​Lattice Sentry PFR Platform Root of Trust (PRoT) Reference Design​ ​​Lattice Sentry PFR Platform Root of Trust design support Mach-NX and MachXO5-NX devices with low-density FPGA and enhanced user-mode security functions.​
MachXO5-NX, Mach-NX
PFR, RoT, Lattice Propel, Lattice Sentry, Security, Defense
Reference Design
 Lattice Sentry 2.2 BKC Reference Design The Lattice Sentry Best-Known Configuration (BKC) Reference Design provides a basic framework to implement a PFR design.
Mach-NX
BKC, PFR, Lattice Propel, Lattice Sentry, Security, Defense

Demos

Lattice Sentry Solutions Stack Platform Firmware Resiliency Concept Server Platform

Demo

Lattice Sentry Root of Trust Demo for MachXO3D

A complete bitstream/firmware package which helps you demonstrate and test a NIST 800-193-compliant PFR solution on the Lattice Sentry Demo Board for MachXO3D

MachXO3D

NIST, RISC-V, Lattice Sentry, Security, Defense

IP Cores

IP Core
 ​​eSPI Target IP Core​ ​​Lattice eSPI Target IP Core is compliant with the Intel eSPI specifications & has its own virtual wire channel in the user interface.​
MachXO5-NX, Mach-NX, MachXO3D, MachXO3, MachXO2, MachXO4
APB, AHB-Lite, Lattice Sentry, OCP
IP Core
 Lattice Sentry PLD Interface IP Core Lattice Semiconductor Customer Programmable Logic Devices (PLD)implements a bidirectional mailbox for sending and receiving messages.
Mach-NX, MachXO5-NX
AHB-Lite, APB, FPGA, RTL, Lattice Propel, PLD, Lattice Sentry, Lattice Sentry PFR IP Package, Security
IP Core
 Lattice Sentry SMBus Mailbox IP Core SMBus, a two-wire interface that support fairness arbitration and compatible with AHB-Lite specification. Target devices are Mach-NX and MachXO3D.
MachXO3D, MachXO5-NX, MachXO4, CertusPro-NX
I2C, AHB-L, Lattice Propel, Lattice Sentry, Security, SMBus, RoT, RTL, Lattice Sentry PFR IP Package
IP Core
 PIC IP Core Lattice Semiconductor PIC soft IP with configurable 1~8 interrupt inputs and 32-bit AHB-L interface for Mach-NX FPGA
Mach-NX, MachXO5-NX
AHB-Lite, Lattice Propel, Lattice Diamond, Lattice Sentry, Lattice Sentry PFR IP Package, Security
IP Core
 SFB Interface IP Core SFB allow access to AHB-L CPLD block , management CPU recovery circuit and Flash sector for read/write.
Mach-NX
AHB-Lite, Lattice Propel, Lattice Sentry, Security, SPI, JTAG, Soc, CPLD, Lattice Sentry PFR IP Package

Development Kits & Boards

Board
 Lattice Sentry Demo Board for MachXO3D A complete platform to help you develop and test a NIST 800-193-compliant PFR solution. Includes numerous features to enable debug, interface and expansion
MachXO3D
Soft Processor, SPI Flash, Raspberry Pi, Security, Lattice Sentry, UAVs
Board
 Lattice Sentry 4.0 Demo Board for MachXO5D-NX A complete platform to help you develop and test a NIST 800-193-compliant PFR solution and help in SoC project in Lattice Radiant and Propel 2024.1 Tools.
MachXO5-NX
Defense, Security, Lattice Sentry, PFR, RoT, Avionics
Board
 Lattice Sentry Demo Board for Mach-NX A complete platform to help you develop and test a NIST 800-193-compliant PFR solution. Includes numerous features to enable debug, interface and expansion
Mach-NX, ECP5 / ECP5-5G
UAVs, Defense, Soft Processor, SPI Flash, Raspberry Pi, Security, Lattice Sentry, Avionics

Application Note
Installation Guides
User Manual

Information Resources

Product Brochure
White Paper

Downloads

Downloadable Software

TITLE	NUMBER	VERSION	DATE	FORMAT	SIZE
Select All
Lattice Sentry 2.2 Mach-NX PFR and SFB Architecture - User Guide	FPGA-TN-02359	1.0	5/24/2024	PDF	902.6 KB
Lattice Sentry 2.2 Mach-NX SoC Function Block Hardware - User Guide	FPGA-TN-02360	1.0	5/23/2024	PDF	1.1 MB
Lattice Sentry Firmware Signing Tool for Mach-NX Devices User Guide	FPGA-TN-02351	1.1	5/3/2024	PDF	919 KB
Lattice Sentry Flash Address Map Generation for Mach-NX Access this document via a Technical Support Request after signing in to the Lattice website. Complete the request form via this link, please click here.			3/13/2024	WEB
