Humanoid Robots Are Reshaping Industry

Lattice FPGAs Help Enable Intelligence, Safety, and Control Across Humanoid Nodes

Built for the Humanoid Era

Humanoid robots are moving rapidly from the research lab to the factory floor and beyond, with the market projected to grow 30 to 40 percent annually through 2030. Yet they are hard to build. Unlike fixed industrial machinery, humanoids place extraordinary demands on the silicon inside them, requiring distributed intelligence, ultra-low power, functional safety, deterministic real-time control, and secure edge intelligence across dozens of mechanically dynamic nodes. Lattice low power FPGAs are purpose-built to meet these demands, scaling intelligence across the modern humanoid platform.



Key Features

Power Budget Per Joint
Power Budget Per Joint
Lattice FPGA fabric runs on less than 1 W, ideal for battery-powered, distributed control nodes.
Functional Safety Certification
Functional Safety Certification
The Lattice MachXO5™-NX and Lattice CertusPro™-NX FPGAs support FuSa to IEC 62061 (SIL 2/3) and ISO 13849 (PLd/PLe).
Heterogeneous Sensor Fusion
Heterogeneous Sensor Fusion
Lattice FPGA fabric connects cameras, Lidar, IMUs, and force/torque sensors in real time, with sub-microsecond latency.
Hard Real‑time Control Loops
Hard Real‑time Control Loops
Lattice FPGA-based control delivers deterministic loop timing below 500 ns.

Hardware Security
Hardware Security
The Lattice Sentry™ solution stack delivers Zero Trust supply chain protection, including secure boot, Root of Trust, and IP protection.
On‑robot AI Inference
On‑robot AI Inference
Run neural-network inference locally at milliwatt power levels, eliminating cloud latency and connectivity risks.
Real‑time Communication
Real‑time Communication
Achieve deterministic synchronization across distributed architectures with FPGA-based real-time fieldbus.
Companion Compute Role
Companion Compute Role
Lattice FPGAs free up host processors for AI and motion planning by handling real-time and interface tasks.



Where Lattice FPGAs Fit in a Humanoid Platform

Lattice FPGAs form the distributed intelligence layer that connects perception to action, bridging sensor data and host compute to enable seamless, real-time control.

SENSOR & PERCEPTION LAYER

Sensor Type                            Interface
RGB‑D Cameras  MIPI CSI‑2 / USB3 / Ethernet
Lidar / ToF  LVDS / SPI
IMU / F/T Sensor  SPI / I2C
Tactile Arrays  Parallel / SPI



LATTICE FPGA INTELLIGENCE LAYER

  Sensor Fusion Hub Edge AI Interference Safety Monitor
Lattice Device Lattice Avant™ / Lattice CertusPro-NX Lattice sensAI™ Lattice MachXO5-NX
Key Functions Protocol bridging, clock domain crossing, data aggregation,
Lattice mVision™ ISP 		Gesture recognition, obstacle detection, anomaly classification IEC 62061 SIL2, ISO 13849 PLd, watchdog timer



HOST COMPUTE PLATFORM

  Central AI Processor Platform Security
Device GPU / NPU SoM, e.g., NVIDIA Jetson Orin™ Lattice Sentry
Key Functions Motion planning, high-level AI, locomotion control stack Secure boot, bitstream encrypt, Zero Trust



ACTUATOR & MOTION CONTROL LAYER

  Per-joint Node ×N Hand / End Effector Leg and Balance Fieldbus
Device Lattice Nexus™ / Lattice CertusPro-NX Lattice Nexus Lattice CertusPro-NX Lattice Automate™
Key Functions PWM, encoder, current loop,
EtherCAT device		 Multi-axis servo, haptic feedback,
force sensing		 Gait control, IMU fusion,
real-time balance loop		 EtherCAT, PROFINET, I/O-Link,
CAN FD



CHOOSE THE RIGHT FPGA FOR EACH ROBOT SUBSYSTEM

Robot Subsystem Lattice Avant Lattice
CertusPro-NX		 Lattice Nexus /
Lattice MachXO5-NX		 Key Benefits
Head / Perception Hub ✓ Primary — — High I/O count for multi-camera MIPI aggregation, ISP, and lidar interface
Torso AI & Fusion ✓ Primary ✓ Alt — Lattice sensAI inference + sensor fusion at mid-range logic density
Arm Servo Controller — ✓ Primary ✓ Alt Sub-500 ns PWM + encoder at <500 mW, multi-axis capable
Leg / Balance Control — ✓ Primary — Real-time gait loop with IMU fusion, EtherCAT device
Safety Monitor (All Zones) — — ✓ Primary IEC 62061 SIL2, ISO 13849 PLd, instant-on watchdog, non-volatile configuration
Fieldbus Interface Node — ✓ Primary ✓ Alt Lattice Automate, EtherCAT, PROFINET, I/O-Link — no external ASIC needed
Platform Security Root ✓ Alt — ✓ Primary Lattice Sentry, NIST SP 800-193, secure boot, bitstream encryption

    Jump to

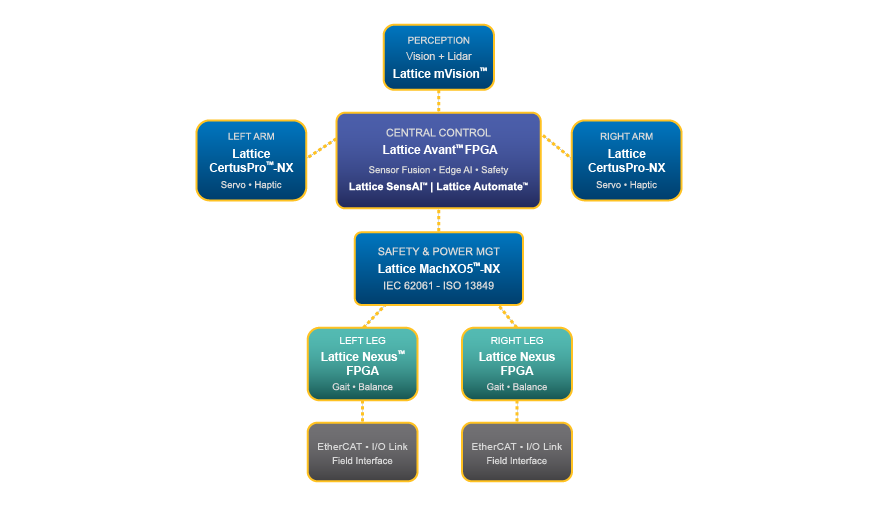

    Block Diagram
