The Lattice Semiconductor CrossLinkU-NX Evaluation Board is specifically designed as the first FPGAs with integrated USB functionality in its class that feature hardened USB 2.0 and USB 3.2 Gen 1 PHY (physical layer), low power standby with Always-On, and a complete set of reference designs to accelerate USB device implementation on FPGA.

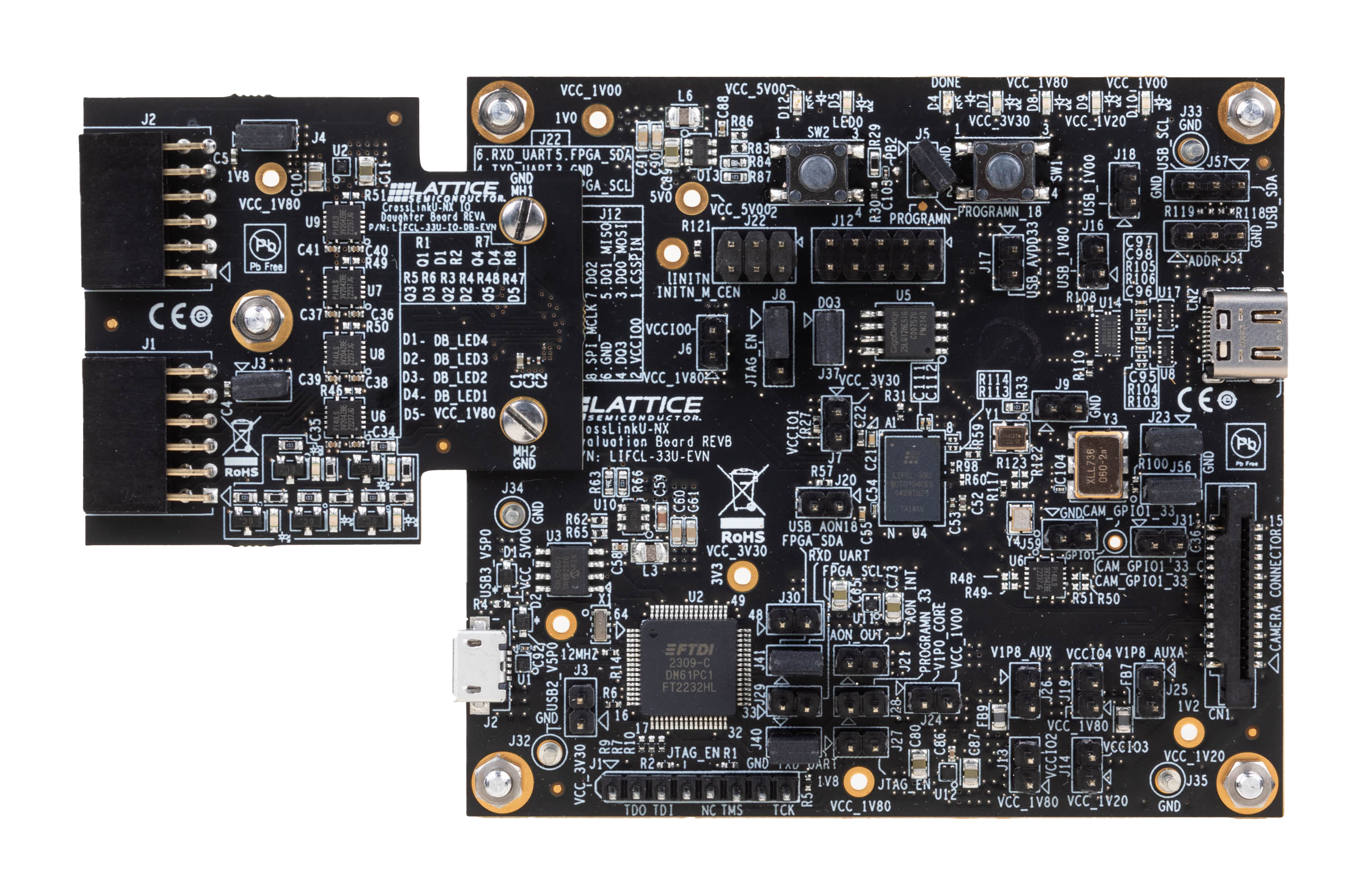

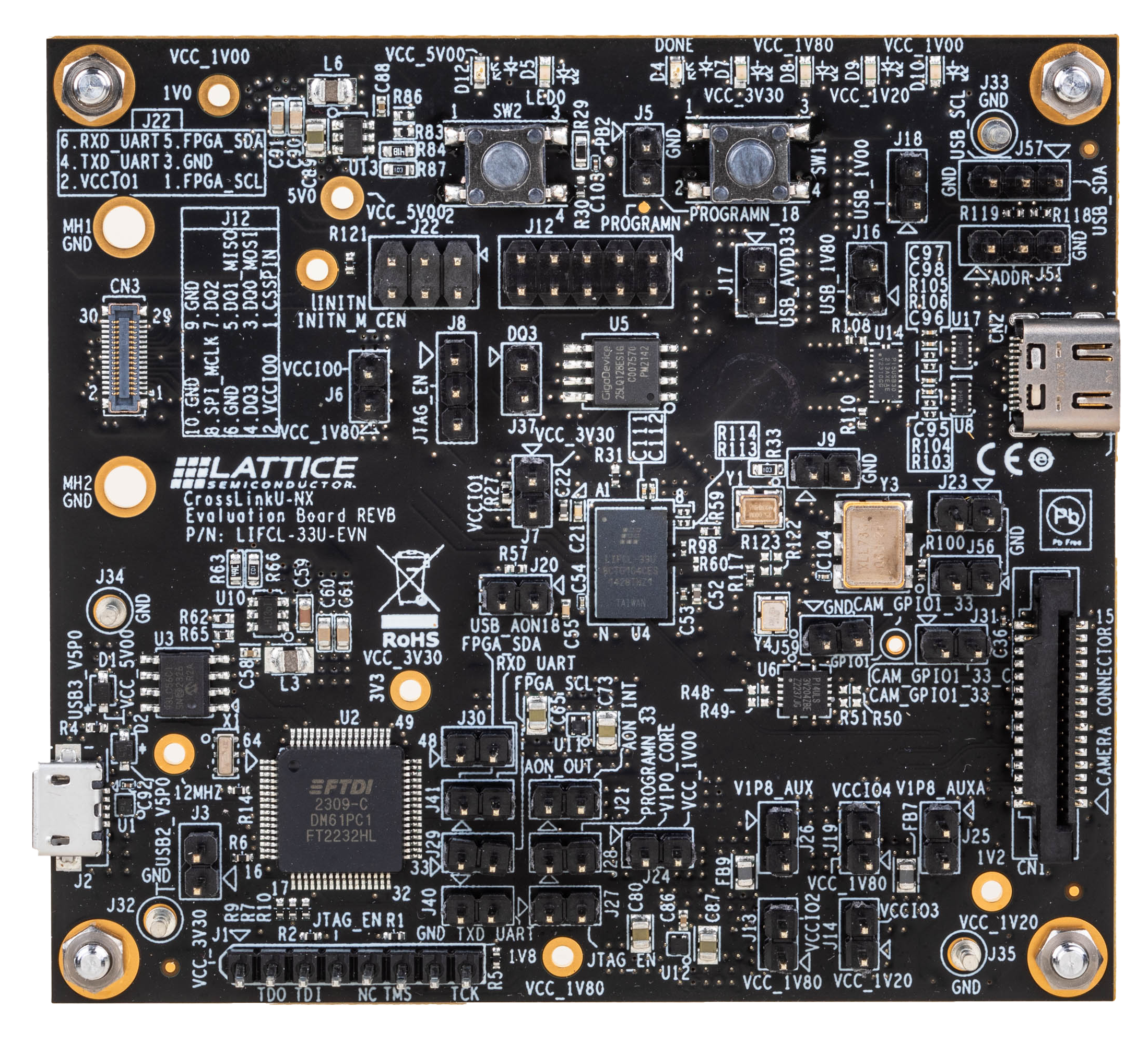

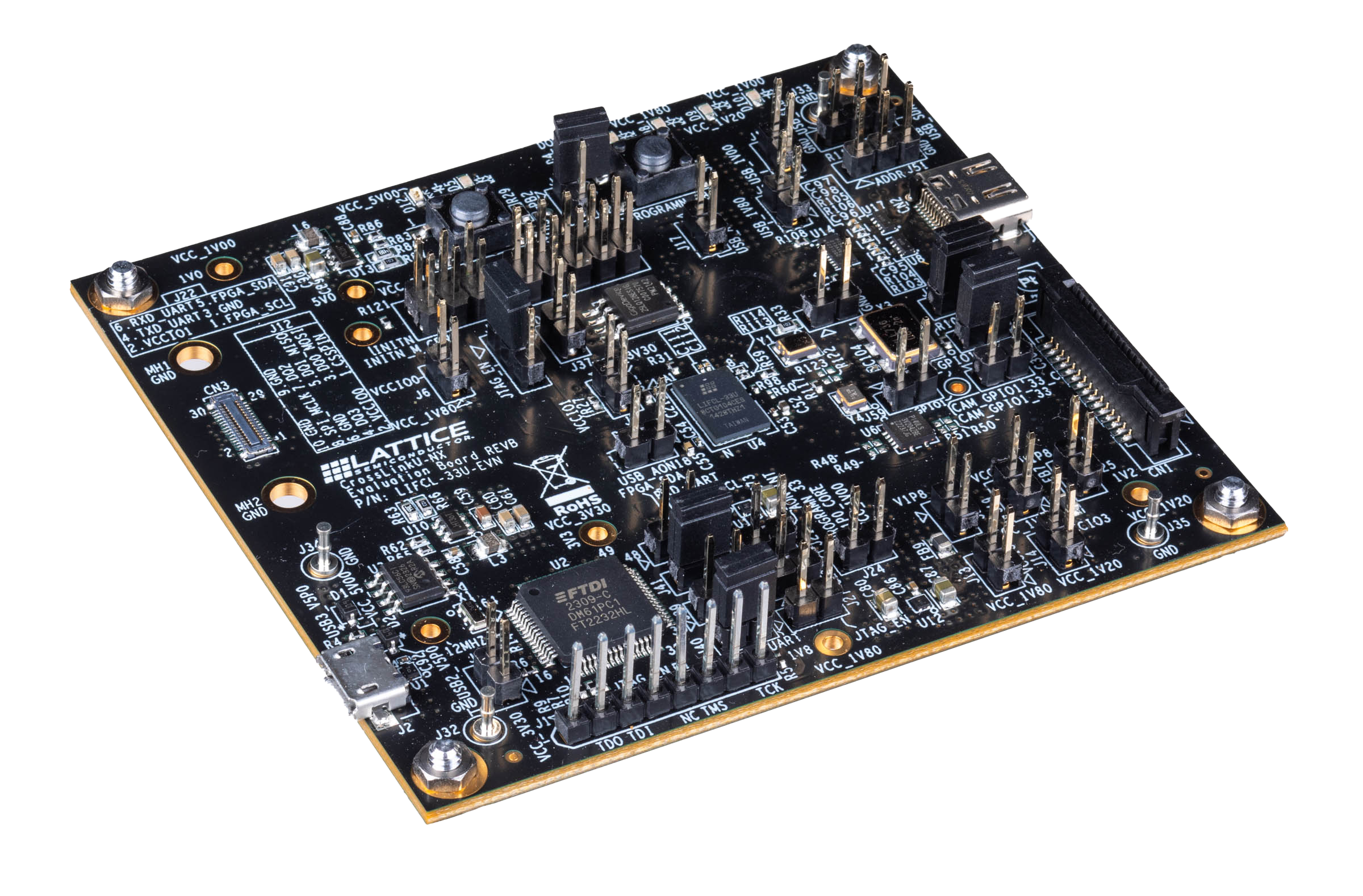

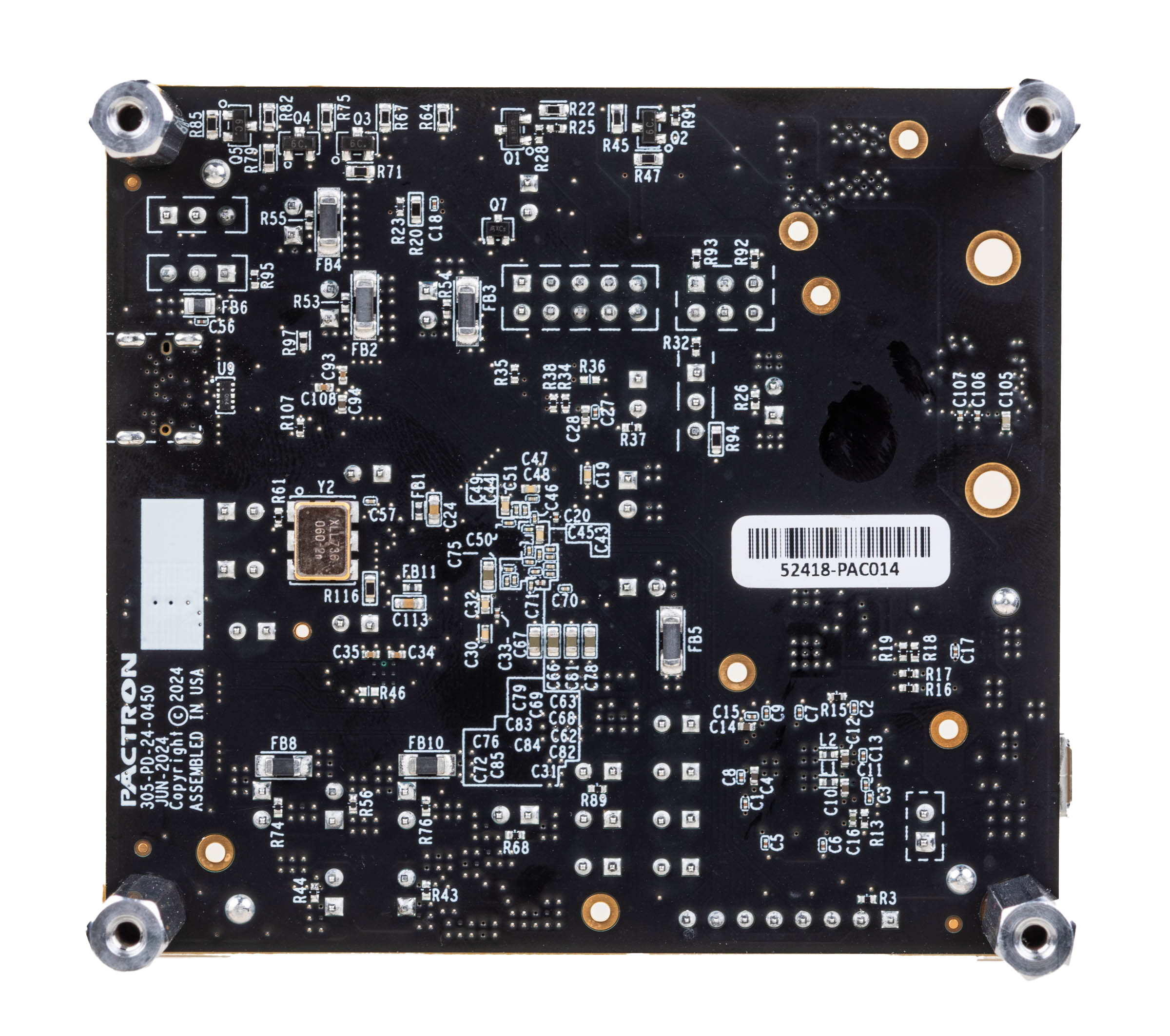

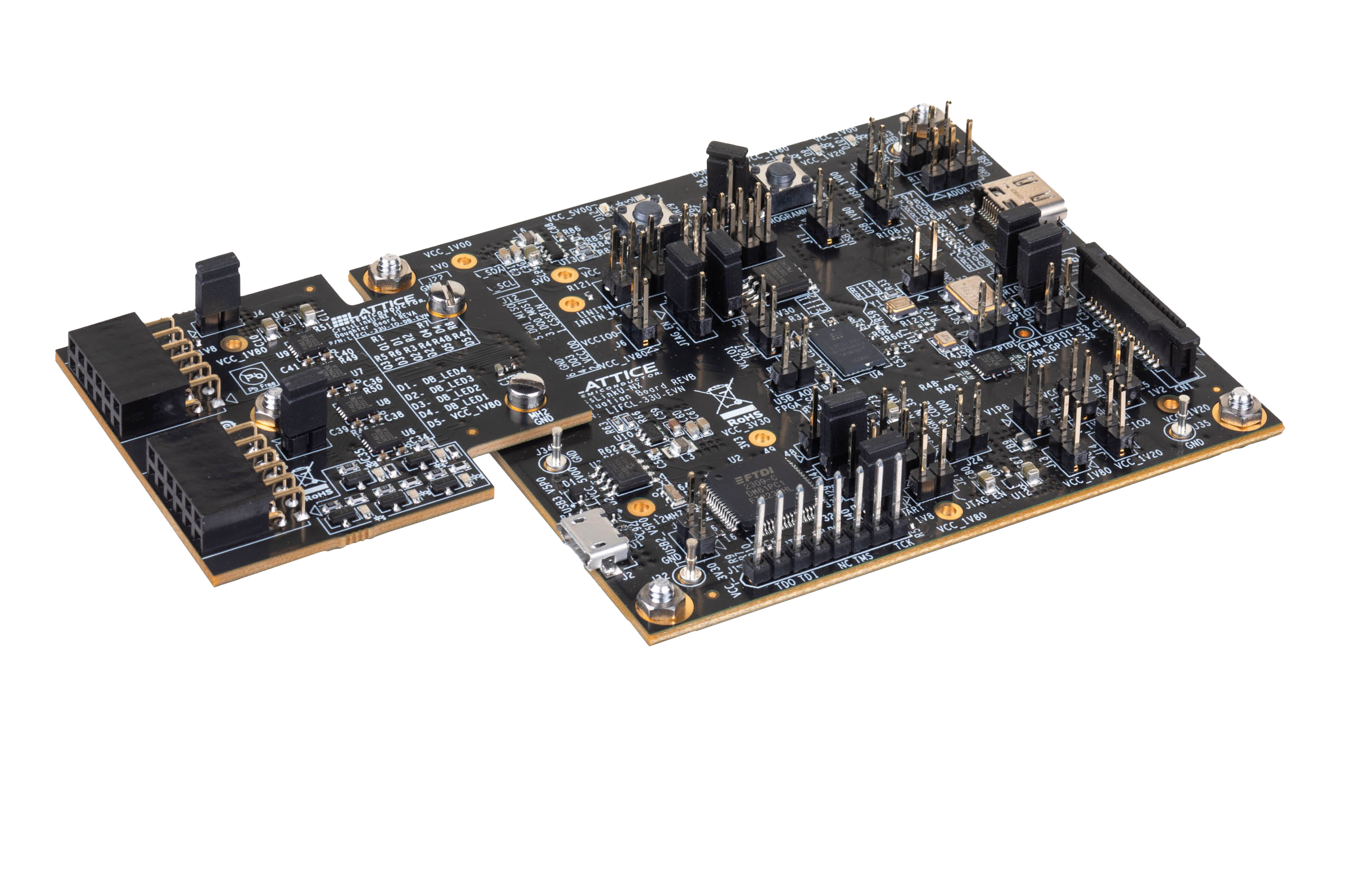

The board‘s key component is the CrossLinkU-NX FPGA, which can receive input from a camera and sends video output over LIFCL-33U’s USB 3.0 interface through the USB Type-C connector. This board also features two PMOD (Peripheral Module) connectors through a daughter board for off board support.
Features
- Supports MIPI CSI-2 receiver (Soft D-PHY) interface for camera data

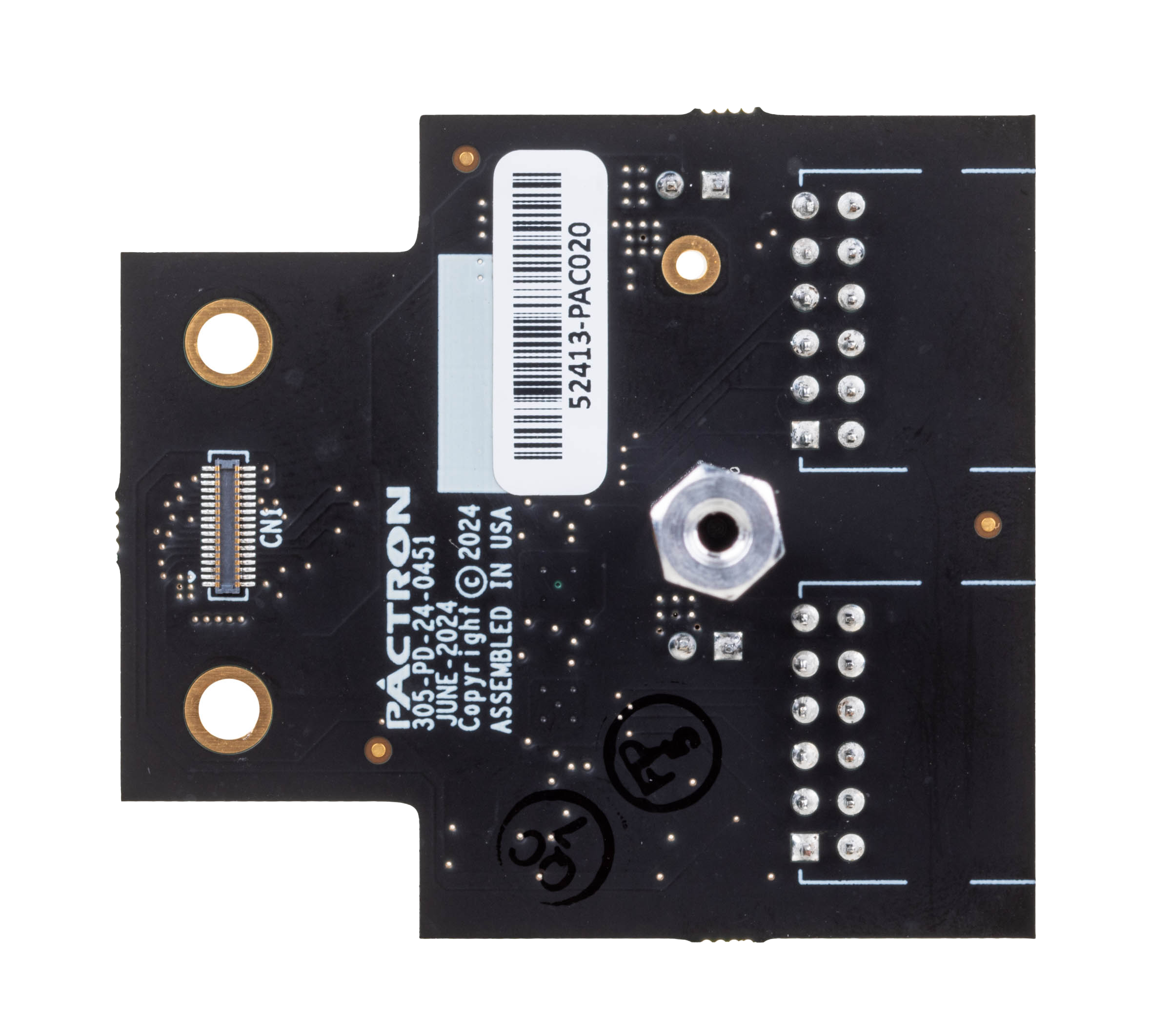

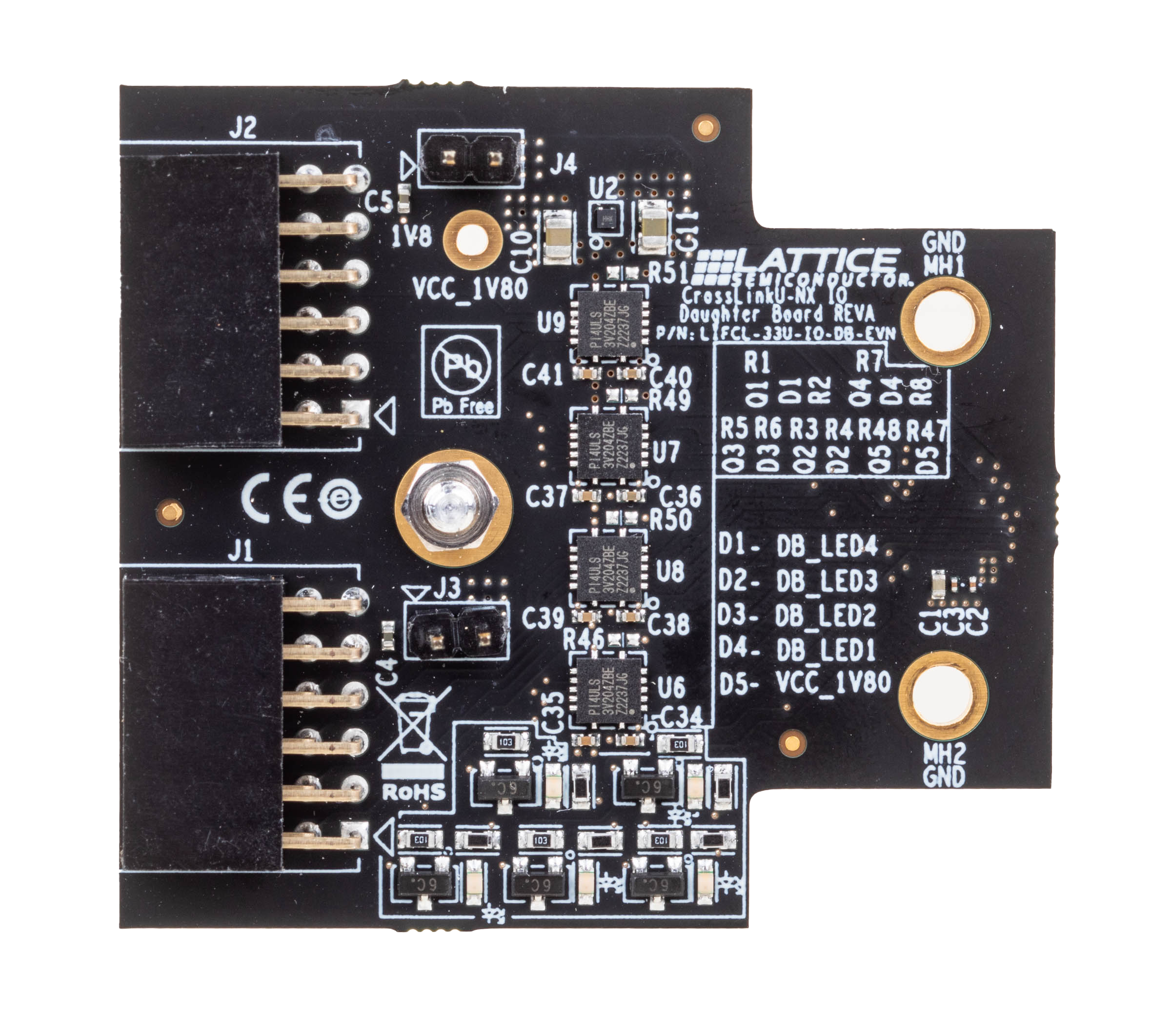

- Implement Two PMOD expansion headers available through daughter board
- Support SPI flash configuration and micro-USB connector for power and FPGA configuration
- Radiant Programmer through USB/FTDI interface (JTAG or SPI)
- Boot from onboard Flash and external SPI Programming through header
