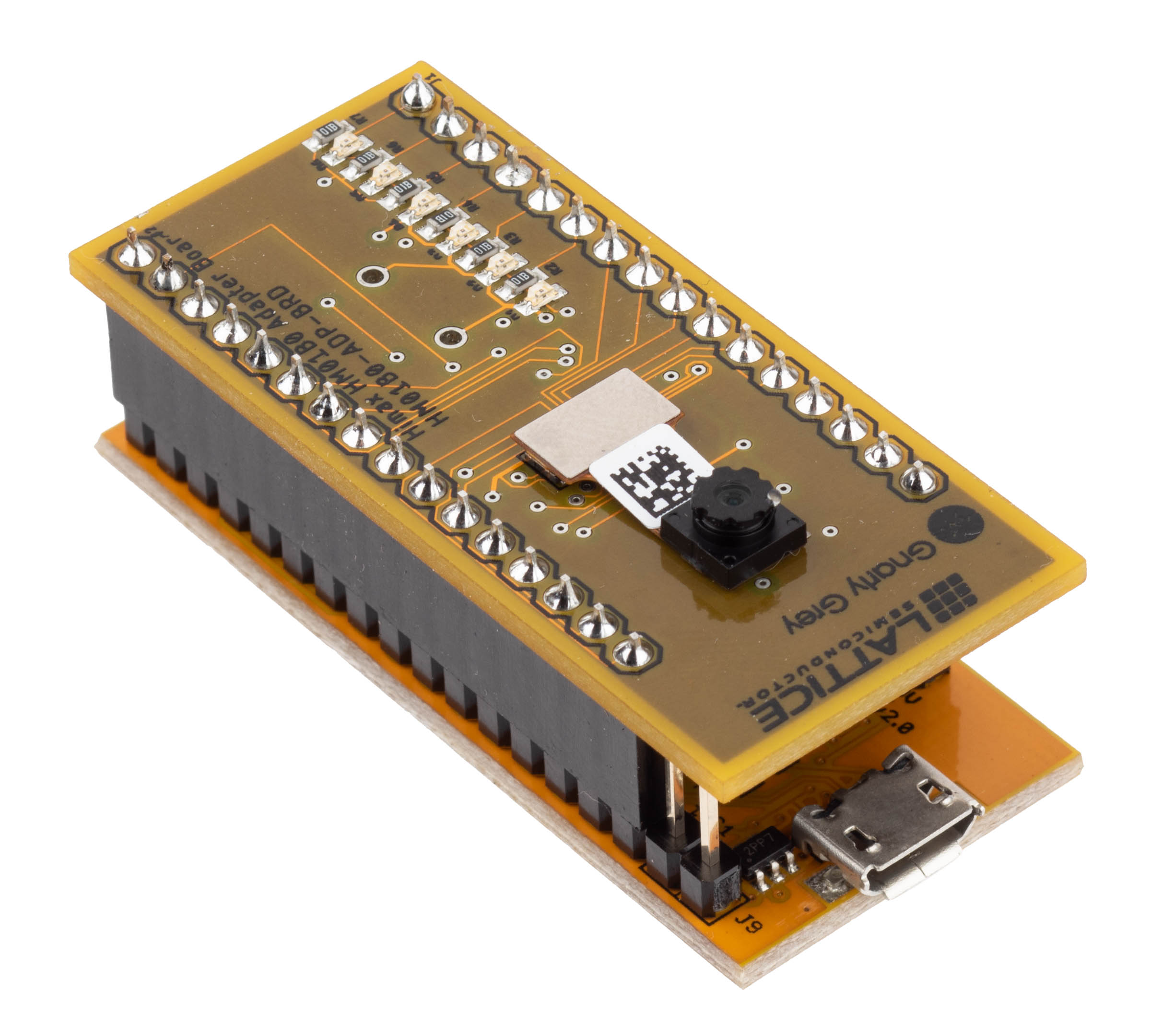

HM01B0 UPduino Shield – A complete development kit for implementing Artificial Intelligence (AI) using vision and sound as sensory inputs. The kit is based on the UPduino 2.0 board, a rapid prototyping development board in the Arduino form factor with the performance and I/O capabilities of the iCE40 UltraPlus FPGA. It also includes the Himax HM01B0 low power image sensor module and two I2S microphones.
Vision/sound AI Development Platform – The kit includes all components to quickly start developing smart, always-on low power IoT devices.
Proof-of-concept demos - Several demos are available to speed up the development of solutions including sensAI based Hand Gesture Detection using the HM01B0 image sensor.
Features

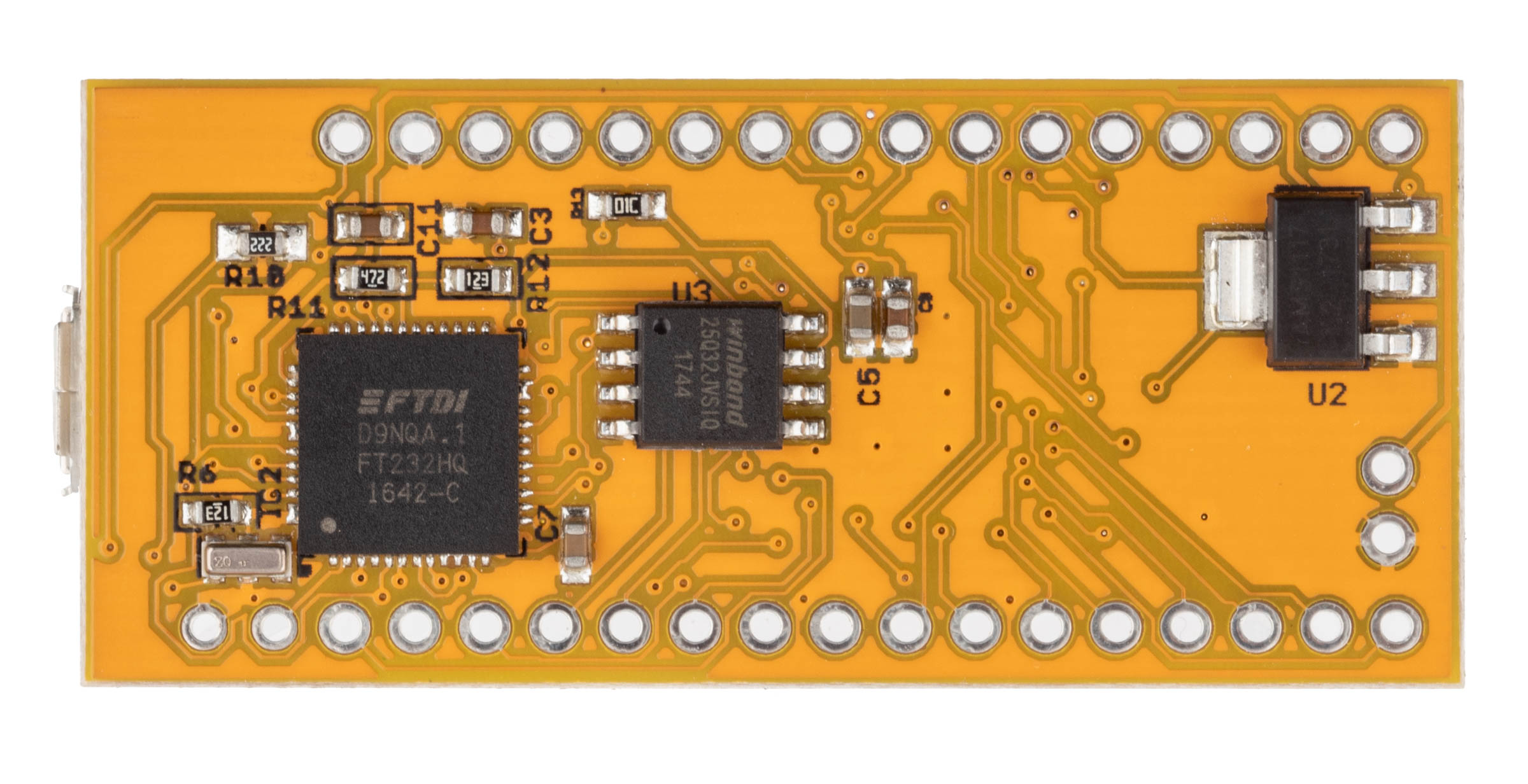

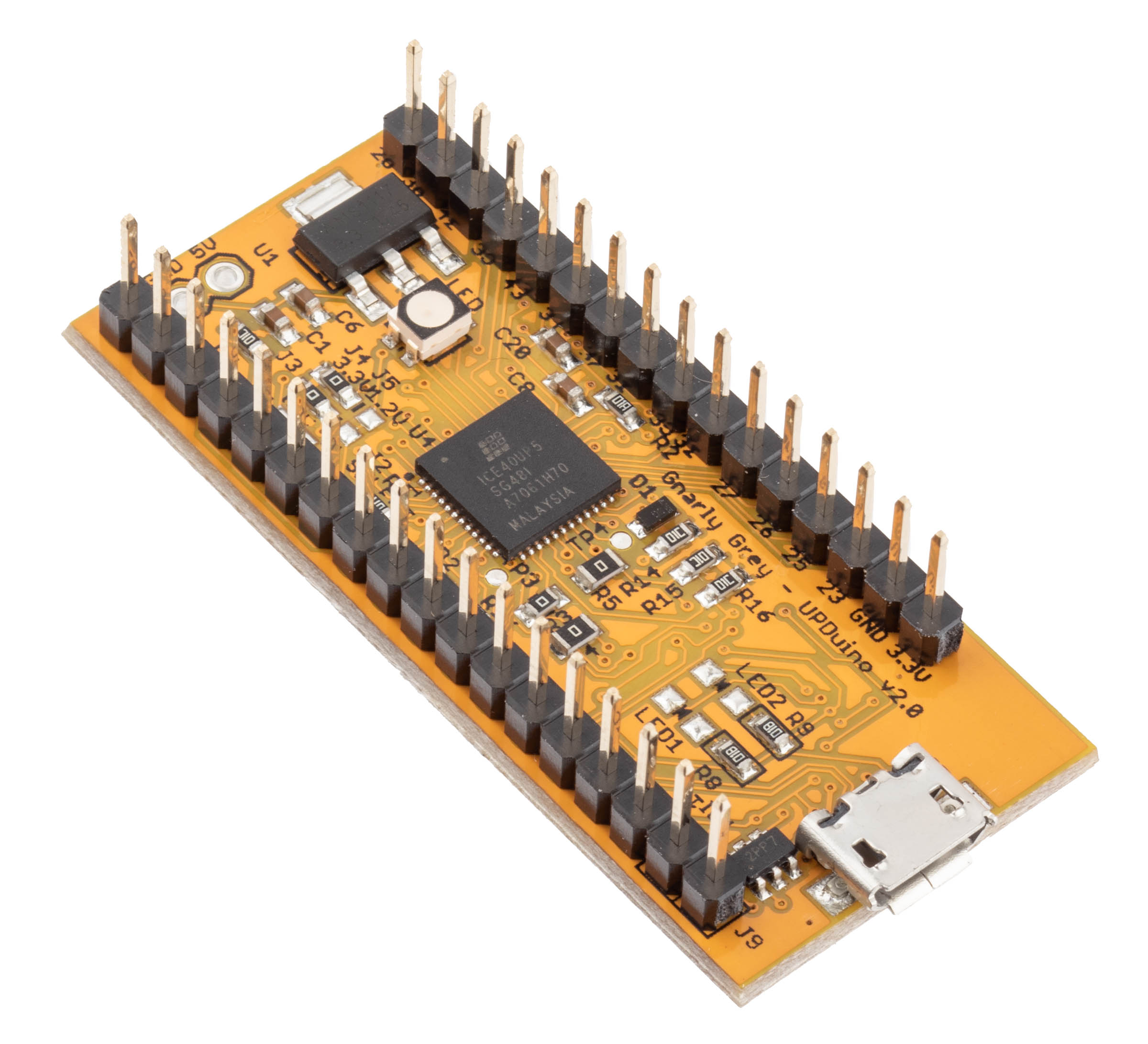

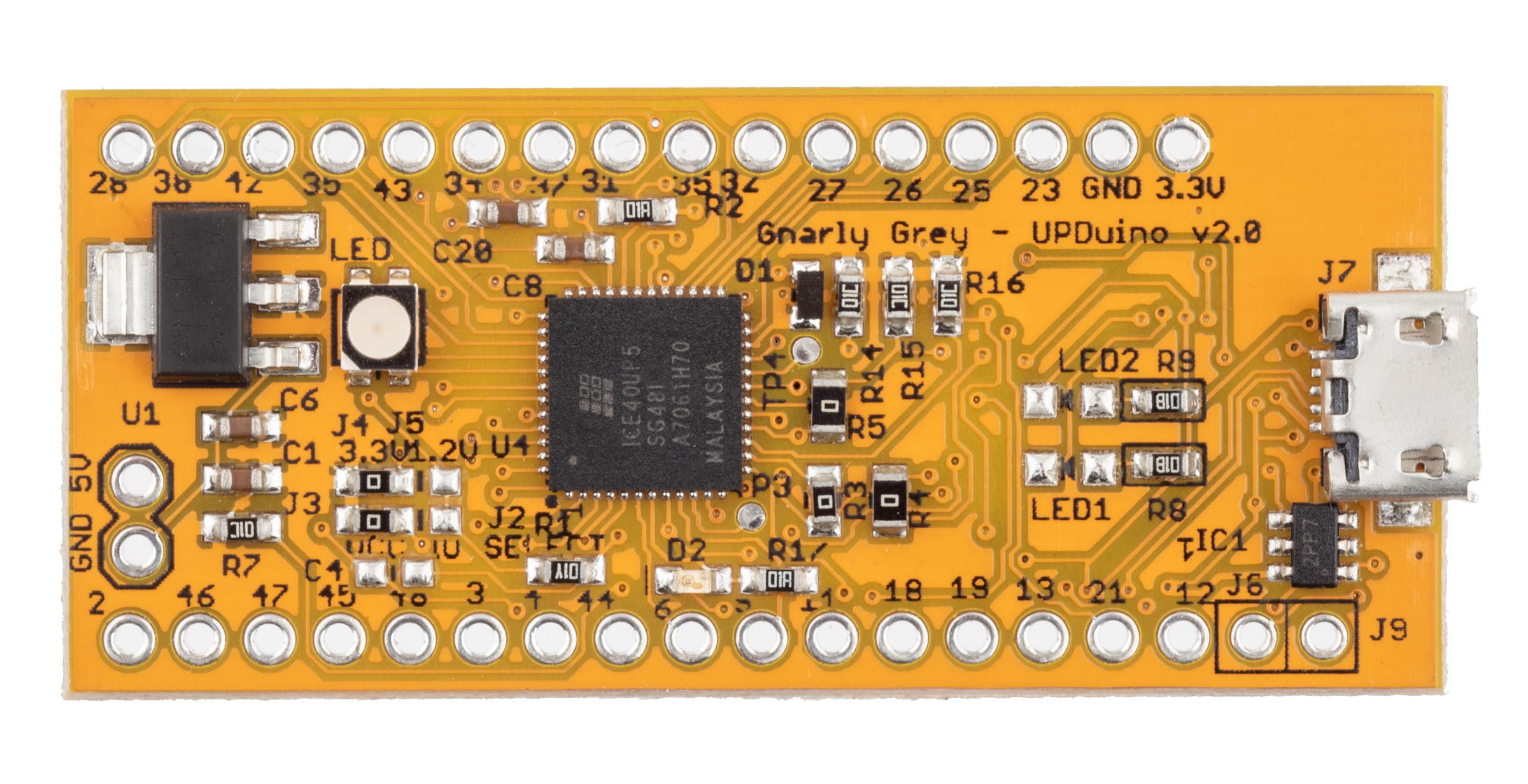

UPduino 2.0
- Lattice UltraPlus FPGA with 5.3K LUTs, 1 Mb SPRAM, 120 Kb DPRAM, 8 Multipliers
- FTDI FT232H USB to SPI Device for FPGA programming
- 12 Mhz Crystal Oscillator Clock Source
- 34 GPIOs on 0.1” headers for connecting to the adapter board
- SPI Flash, RGB LED, 3.3 V and 1.2 V voltage regulators
Himax HM01B0 Module
- Production module for HM01B0 low power image sensor with board to board connector
- Supports 30 fps at 1.1 mW

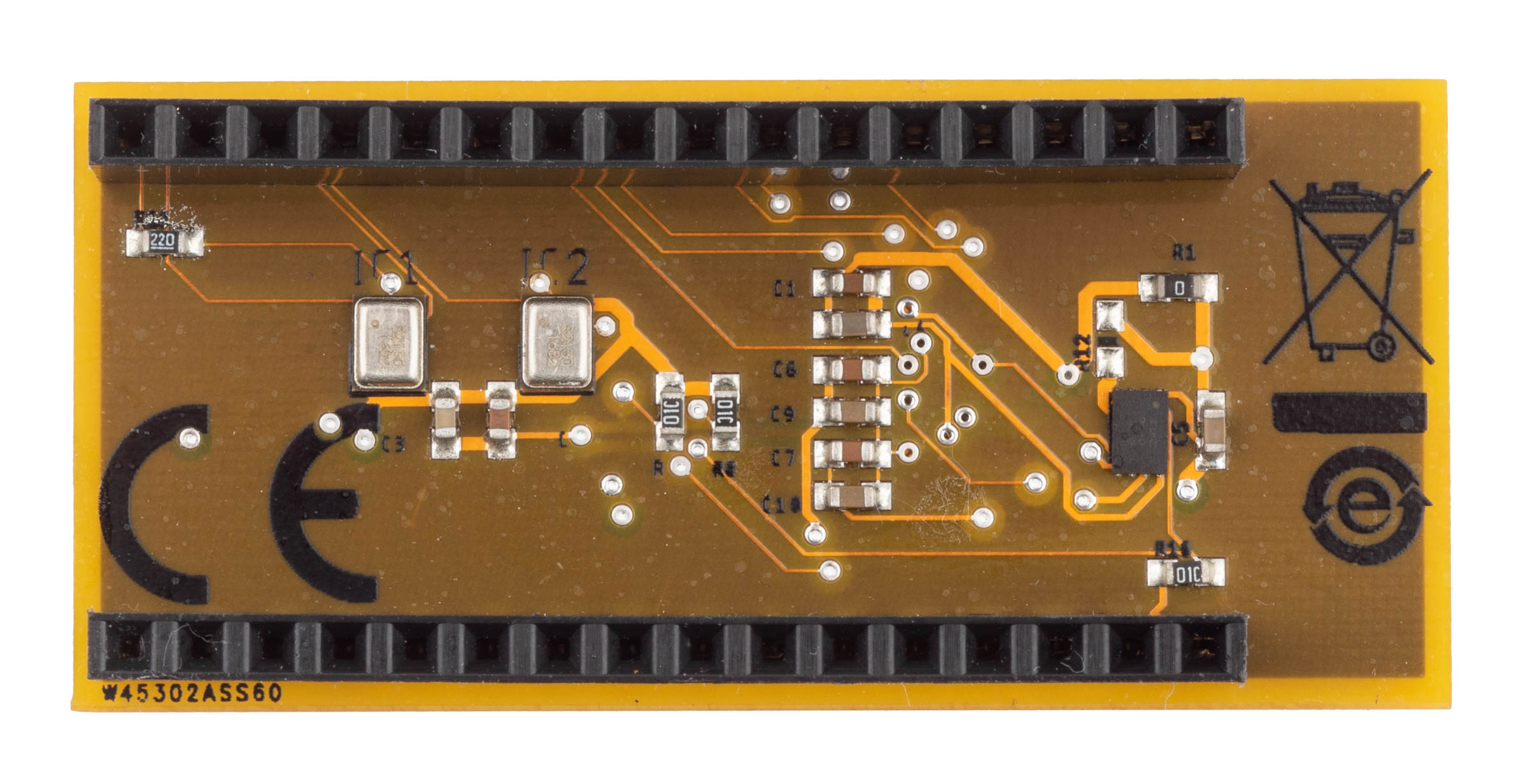

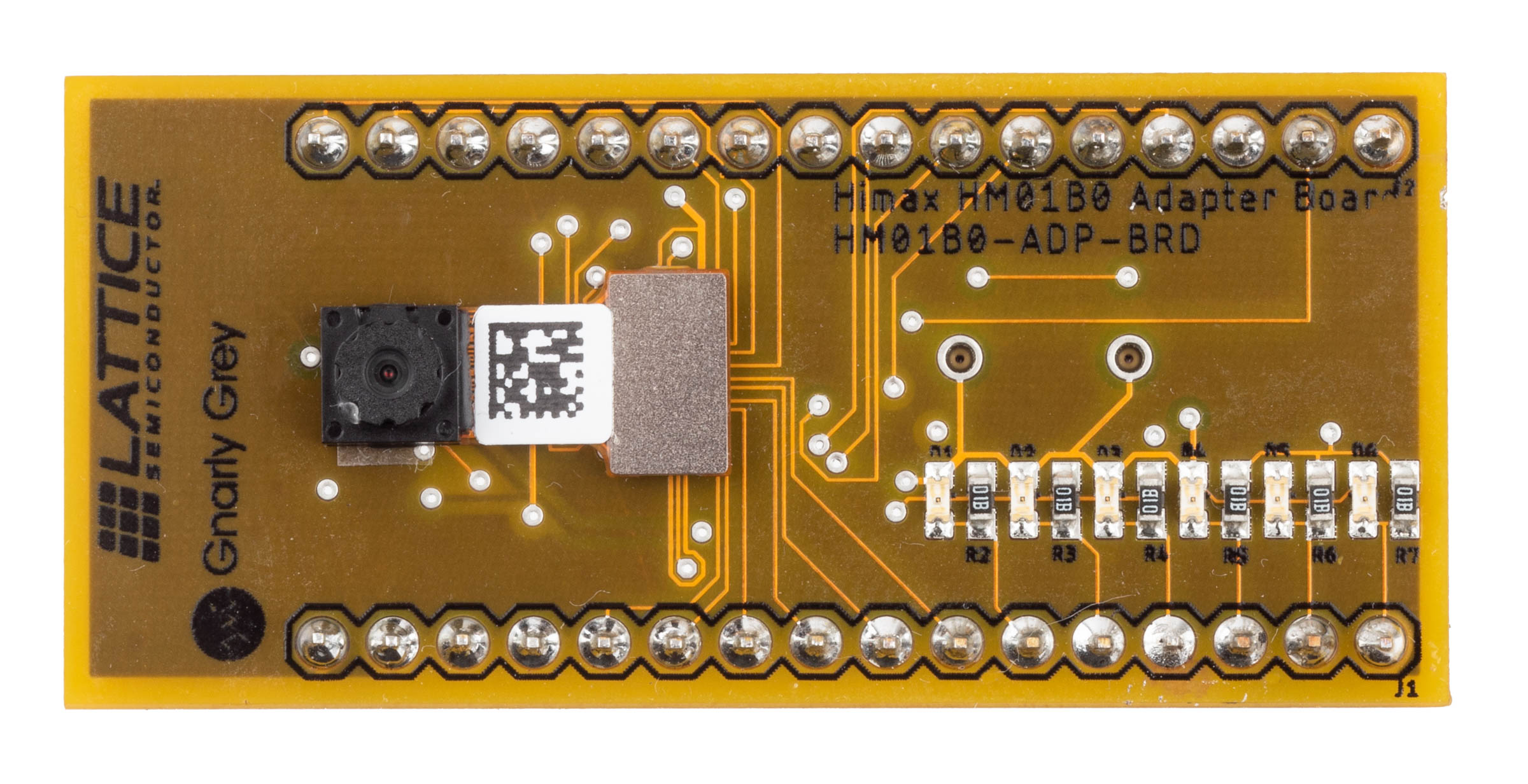

Himax HM01B0 Adapter Board
- Mating adapter board, connects to the UPduino 2.0 and HM01B0 Module board
- 2 I2S microphones
- Debug LEDs
